Large Diameter Marine Offshore Steel Floating Mooring Buoy

МОК:	1
цена:	500
Стандартная упаковка:	nude packing
Срок доставки:	15-30 working days
способ оплаты:	L/C,D/A,D/P,T/T
Пропускная способность:	50 pcs/week

Подробности Информация

Описание продукта

Подробная информация

Place of Origin

China

Фирменное наименование

Henger

Сертификация

ISO 9001

Model Number

004

Product name:

Anchor pendant buoy

Material:

Steel, EVA filling

Size:

Customized Size

Warranty:

12 months

Color:

Customized Color

Logo service:

Customized

Trademark:

Henger

Origin:

China

Design:

Modular Design

Описание продукта

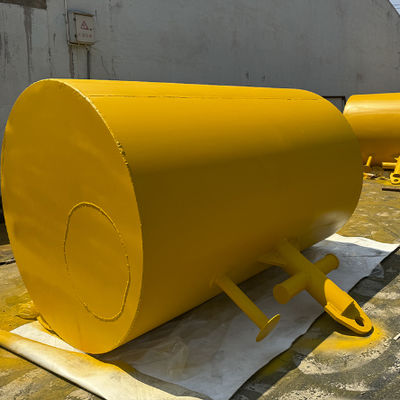

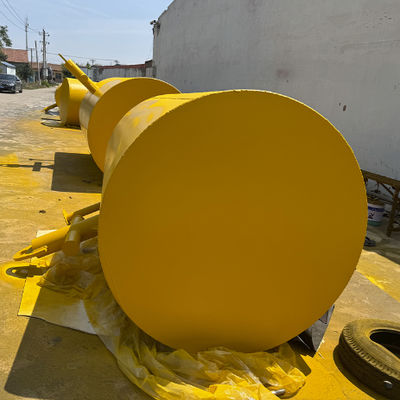

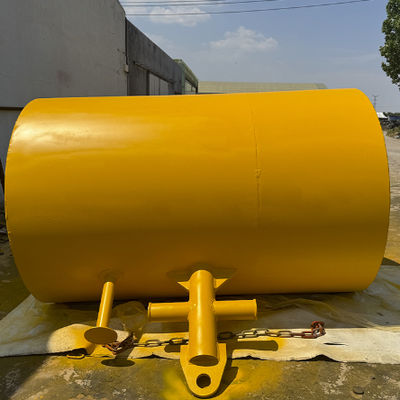

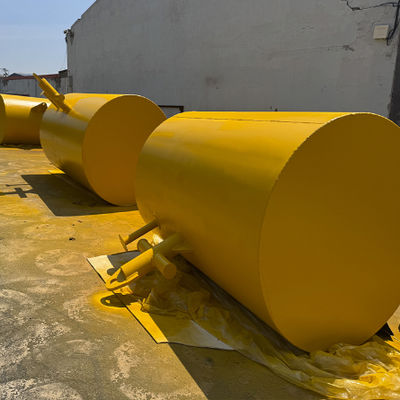

Large Diameter Marine Offshore Steel Floating Mooring Buoy

Product Description

Steel mooring buoys stand as pivotal anchoring infrastructure within port facilities, meticulously engineered to reliably accommodate vessels across a spectrum of tonnages. Their operational framework is defined by inherent convenience and adaptability: when deployed in anchorage zones, they streamline mooring protocols and adeptly adjust to fluctuations in vessel traffic volumes.

Beyond their core anchoring role, these buoys serve as enablers of critical maritime operations. They offer a stable platform for cargo lightering—facilitating transshipment between vessels to bypass berth limitations—and support on-site vessel maintenance and repair tasks. This capability eliminates the necessity of 占用 precious dry dock resources or disrupting routine port workflows.

In essence, the multifunctionality and operational efficacy of steel mooring buoys render them irreplaceable, underpinning the seamless, agile functioning of modern port operations.

Steel Mooring Buoy Technical Parameter

Model	Net Buoyancy	D×H (m)	Suitable for Ship Tonnage (t)
HESMB 2.0	3	2.0×1.74	<2000
HESMB 2.6	6	2.6×2.27	<5000
HESMB 3.6	19	3.6×2.14	<10000
HESMB 5.0	28.5	5.0×3.4	<12000
HESMB 5.5	31.2	5.5×3.0	<100000
HESMB 6.0	34.2	6.0×3.2	<150000
HESMB 8.0	40.3	8.0×2.46	<250000

Anchor Pendant Buoy

Anchor pendant buoys come in an extensive range of sizes, offering options such as suitcase-style, modular, non-modular, custom-made, and standard configurations. All units are equipped with removable central steelwork, which is tailored to meet specific customer requirements—typically featuring either a handling crucifix/pad eye arrangement or a through hawse designed for use with anchor wire instead of chain.
Large Diameter Marine Offshore Steel Floating Mooring Buoy 0

Anchor Pendant Buoy Technical Parameters

Model	Reserve Buoyancy (kg)	Diameter (mm)	Float Length (mm)	Overall Length (mm)	Weight (kg)
HE-APB1000	1000	1350	1100	1900	300
HE-APB2000	2000	1500	1500	2600	500
HE-APB3000	3000	1850	1500	2600	600
HE-APB4000	4000	2000	1900	2900	850
HE-APB6000	6000	2500	2200	3250	1000
HE-APB8000	8000	2500	2200	3250	1250
HE-APB10000	10000	3000	2200	3500	1550
HE-APB20000	20000	3500	3000	4200	2400

*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
